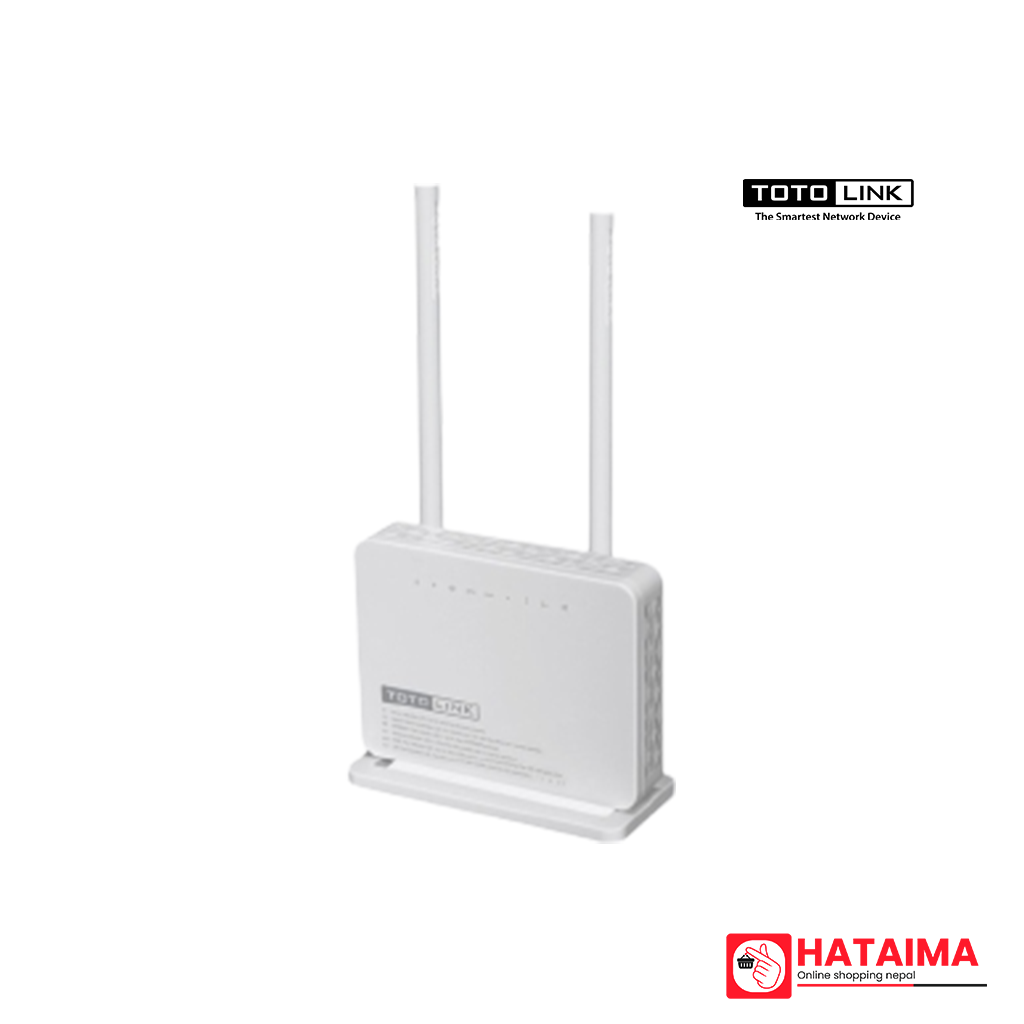

| Name | TOTOLINK ADSL+DSL Wireless Router 300mbps |
|---|---|
| Brand | TOTOLINK |
| Model | ND300 |
| Interface | 3 *10/100Mbps RJ45 LAN Ports 1 *10/100Mbps RJ45 WAN/LAN Port 1 *RJ11 ADSL Port |
| Power | 9V DC/0.5A |
| Button | WPS/RST Button WiFi ON/OFF Button Power ON/OFF Switch |
| LED Indicators | 1 *Power, 1 *System, 1*Internet, 1*WLAN, 1*ADSL, 4 *LAN |
| Antenna | 2 *5dBi Fixed Antennas |
| Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b ADSL, ADSL2, ADSL2+ |
| RF Frequency | 2.4~2.4835GHz |
| Data Rate | 802.11n: up to 300Mbps 802.11g: up to 54Mbps (dynamic) 802.11b: up to11Mbps (dynamic) |
| Wireless Security | 64/128-bit WEP, WPA/WPA2 (AES/TKIP) |
| Output Power | <20dBm |
| Channels | 1-11 (North America), 1-13 (General Europe), 1-14 (Japan) |
| Modulation Type | DBPSK, D QPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM) |
| Reception Sensitivity | 270M: -61 dBm@10% PER 135M: -65 dBm@10% PER 54M: -68 dBm@10% PER 11M: -85 dBm@8% PER 6M: -88 dBm@10% PER 1M: -90 dBm@8% PER |
| Network Settings | WAN, LAN, WLAN |
| Wireless | Wireless Basic Setup Repeater Multiple APs MAC Authentication WDS WPS Advanced Setup |
| NAT/QoS | Port Forwarding QoS DMZ |
| Function | ● Multi-in-one Solution ● One-Click WiFi On/Off ● Superior ADSL Capability |
| Firewall Settings | MAC/IP/PORT /URL Filter ACL DoS |
| Management | Upgrade Password Reboot Time Log Diagnostics |
| Remarks | 300Mbps Wireless N ADSL 2/2+ Modem Router |
| Environment | Operating Temperature: 0℃~55℃ (32℉~131℉) Storage Temperature: -20~65℃ (-4℉~149℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
| Country of Origin | South Korea |
| Warranty | No |
