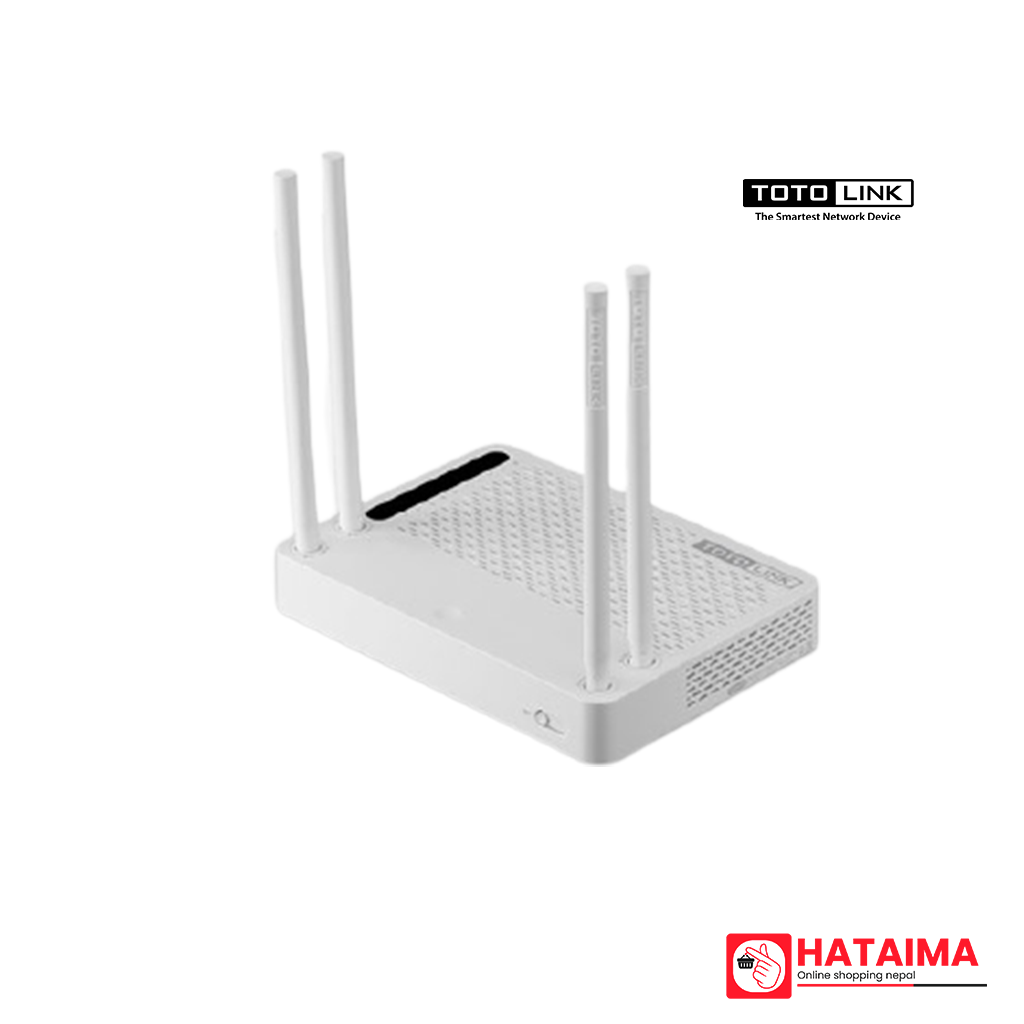

Name | TOTOLINK AC1200 Wireless Dual Band Gigabit Router with USB Port |
---|---|
Brand | TOTOLINK |
Model | A2004NS |
Interface | 4 *10/100/1000Mbps LAN Ports 1 *10/100/1000Mbps WAN Port 1 *USB 2.0 Port |
Power | 12V DC/2A |
Button | 1 *WPS Button 1 *RST Button |
LED Indicators | 1 *Power, 1 *CPU, 1 *2.4G Wireless, 1 *5G Wireless, 1 *WAN, 4 *LAN, 1*USB |
Antenna | 2 *5dBi Fixed Antennas(2.4GHz ), 2 *5dBi Fixed Antennas(5GHz ) |
Standards | IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a |
RF Frequency | 2.4GHz/5GHz |
Data Rate | 2.4GHz: Up to 300Mbps 5GHz: Up to 867Mbps |
Wireless Security | 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES) |
Channels | 2.4GHz: 1-11 (North America), 1-13 (General Europe), 1-14 (Japan) 5GHz: 36~165 |
Modulation Type | DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM) |
Reception Sensitivity | 270M: -64 dBm@10% PER 135M: -61 dBm@10% PER 54M: -68 dBm@10% PER 11M: -85 dBm@8% PER 6M: -88 dBm@10% PER 1M: -90 dBm@8% PER |
Network Settings | WAN Type: PPPoE/DHCP/Static IP LAN Interface LAN/DHCP Server. |
Wireless | Multiple BSS Multibridge(Repeater): Wireless Bridge/Wireless WAN MAC Authentication WDS WPS |
NAT/QoS | Port Forwarding DMZ/Twin IP Port Trigger Routing Table. QoS Connection Control Wired Port Link (speed, duplex) |
Function | ● VPN Server(5 VPN tunnels) ● USB Storage ● 2 *5dBi Fixed Antennas(2.4GHz ), 2 *5dBi Fixed Antennas(5GHz ) ● Dual Band |
Firewall Settings | Internet Access Control: IP/MAC Address filtering Net Detector Remote/Internal access list |
Management | System Log, User Name & Password, Firmware Upgrade, System Time, Configuration backup/restore |
Remarks | The VPN server can not only protect the privacy of your information, but also simplify network management. |
Environment | VPN Server(5 VPN tunnels) DDNS WOL Host Scan |
Country of Origin | South Korea |
Warranty | 2 years |
