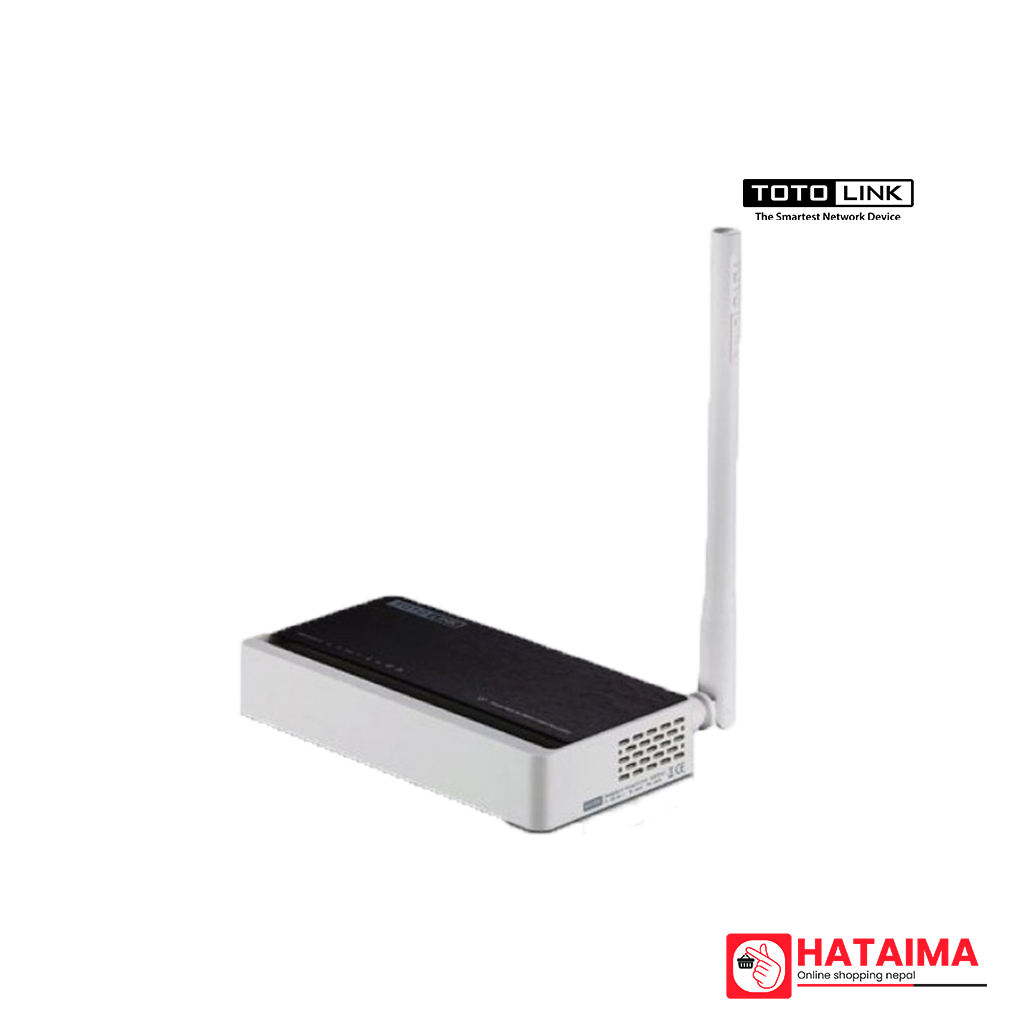

| Name | TOTOLINK 150Mbps Wireless N Router |
|---|---|
| Brand | TOTOLINK |
| Model | N150RT |
| Interface | 4 *10/100Mbps LAN Ports 1 *10/100Mbps WAN Port |
| Power | 9V DC/0.5A |
| Button | RST WPS Button, Power ON/OFF |
| LED Indicators | 1 *Power, 1 *CPU, 1 *Wireless, 1 *WAN, 4 *LAN |
| Antenna | 1 *5dBi External Fixed Antenna |
| Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| RF Frequency | 2.4~2.4835GHz |
| Data Rate | 802.11n: Up to 150Mbps 802.11g: Up to 54Mbps (dynamic) 802.11b: Up to11Mbps (dynamic) |
| Wireless Security | 64/128-bit WEP, WPA/WPA2 (AES/TKIP) |
| Output Power | No |
| Channels | 1-11 (North America), 1-13 (General Europe), 1-14(Japan) |
| Modulation Type | DBPSK, DQPSK, CCK and OFDM (BPSK,QPSK,16-QAM/ 64-QAM) |
| Reception Sensitivity | 135M: -65 dBm@10% PER 54M: -68 dBm@10% PER 11M: -85 dBm@8% PER 6M: -88 dBm@10% PER 1M: -90 dBm@8% PER |
| Network Settings | LAN Interface WAN Interface: DHCP Client, Static IP, PPPoE, PPTP and L2TP VLAN Settings |
| Wireless | Basic Settings(including Band, Mode, SSID, Multiple APs, etc.) Security Settings Site Survey WDS Advanced Settings Access Control WPS Schedule |
| NAT/QoS | DDNS QoS Operation Mode SSH Server |
| Function | ● Excellent Wireless Network Performance ● WDS for Optimal Coverage |
| Firewall Settings | IP Filtering / Port Filtering / MAC Filtering / URL Filtering Port Forwarding / DMZ / Denial- of- Service / NAT Mapping |
| Management | Upgrade Firmware / Save/Reload Settings / Web Login Password / TR-069 config Date and Time / Reboot Router / Reboot Schedule |
| Remarks | Outstanding Bandwidth Control with QoS with Robust Security |
| Environment | Operating Temperature: 0~40 (32~104) Storage Temperature: -40~70 (-40~158) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~95% non-condensing |
| Country of Origin | South Korea |
| Warranty | 3 years |
