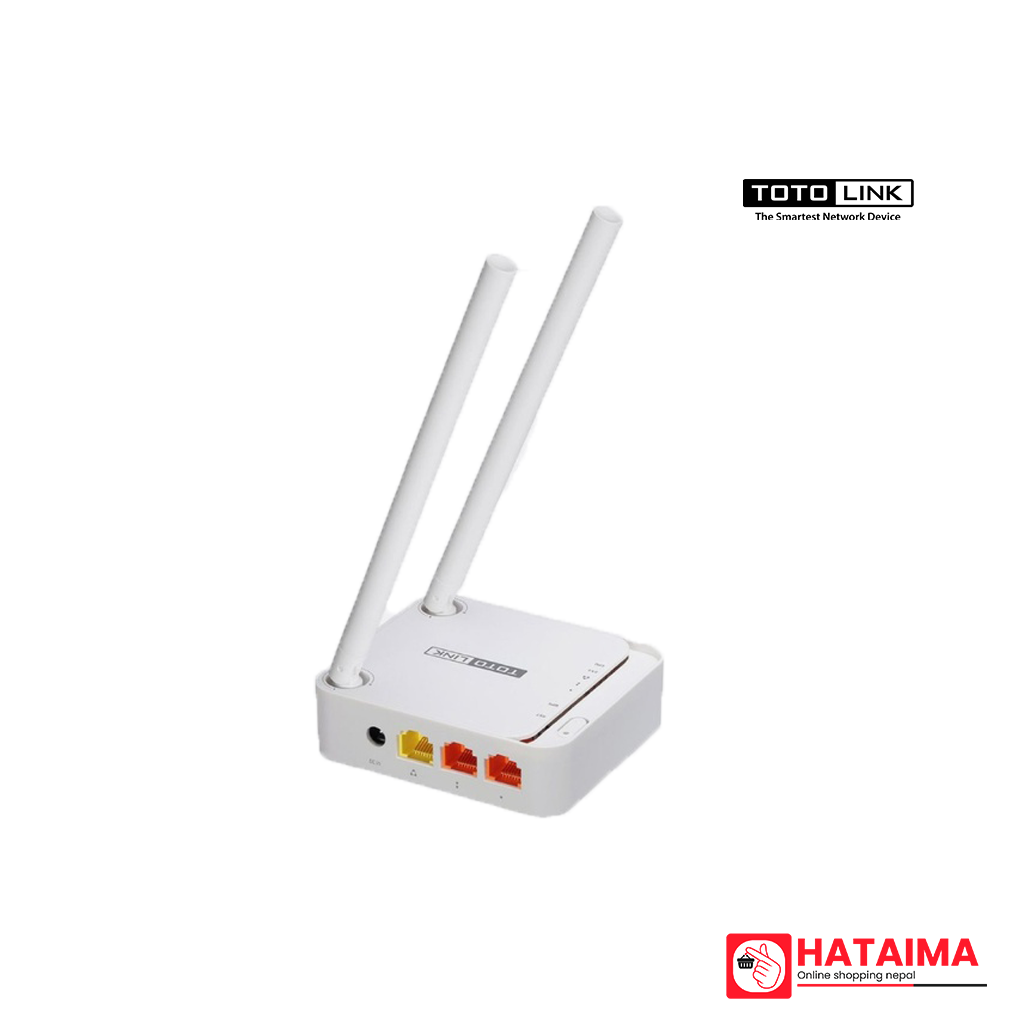

| Name | Totolink 300Mbps Mini Wireless N Router |
|---|---|
| Brand | TOTOLINK |
| Model | N200RE-V3 |
| Interface | 2 *10/100Mbps LAN Ports 1 *10/100Mbps WAN Port |
| Power | 9V DC/0.5A |
| Button | 1 *RST Button 1 *WPS Button |
| LED Indicators | 1 *CPU, 1 *Wireless, 1 *WAN, 2 *LANs |
| Antenna | 2 *5dBi fixed antennas |
| Standards | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b |
| RF Frequency | 2.4~2.4835GHz |
| Data Rate | 802. 11n: Up to 300Mbps 802.11g: Up to 54Mbps (dynamic) 802.11b: Up to11Mbps (dynamic) |
| Wireless Security | 64/128-bit WEP, WPA/WPA2 and WPA-Mixed |
| Modulation Type | Wireless ISP Client Router Wireless Client Repeater(Range Extender) Router Bridge with AP Client |
| Reception Sensitivity | 270M: -61 dBm@10% PER 135M: -65 dBm@10% PER 54M: -68 dBm@10% PER 11M: -85 dBm@8% PER 6M: -88 dBm@10% PER 1M: -90 dBm@8% PER |
| Network Settings | VLAN, IPv6 |
| Wireless | Multiple SSID, MAC Authentication, Universal Repeater, WDS,WPS |
| Function | ● EIRP : < 20dBm ● |
| Firewall Settings | MAC Filtering, IP Filtering, Port Filtering, URL Filtering, Port Forwarding, DMZ |
| Management | Firmware Upgrade, QoS, TR-069 config, DDNS, Access Control |
| Remarks | Schedule : Reboot Schedule, Wireless Schedule |
| Environment | Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
| Country of Origin | South Korea |
| Warranty | 2 years |
