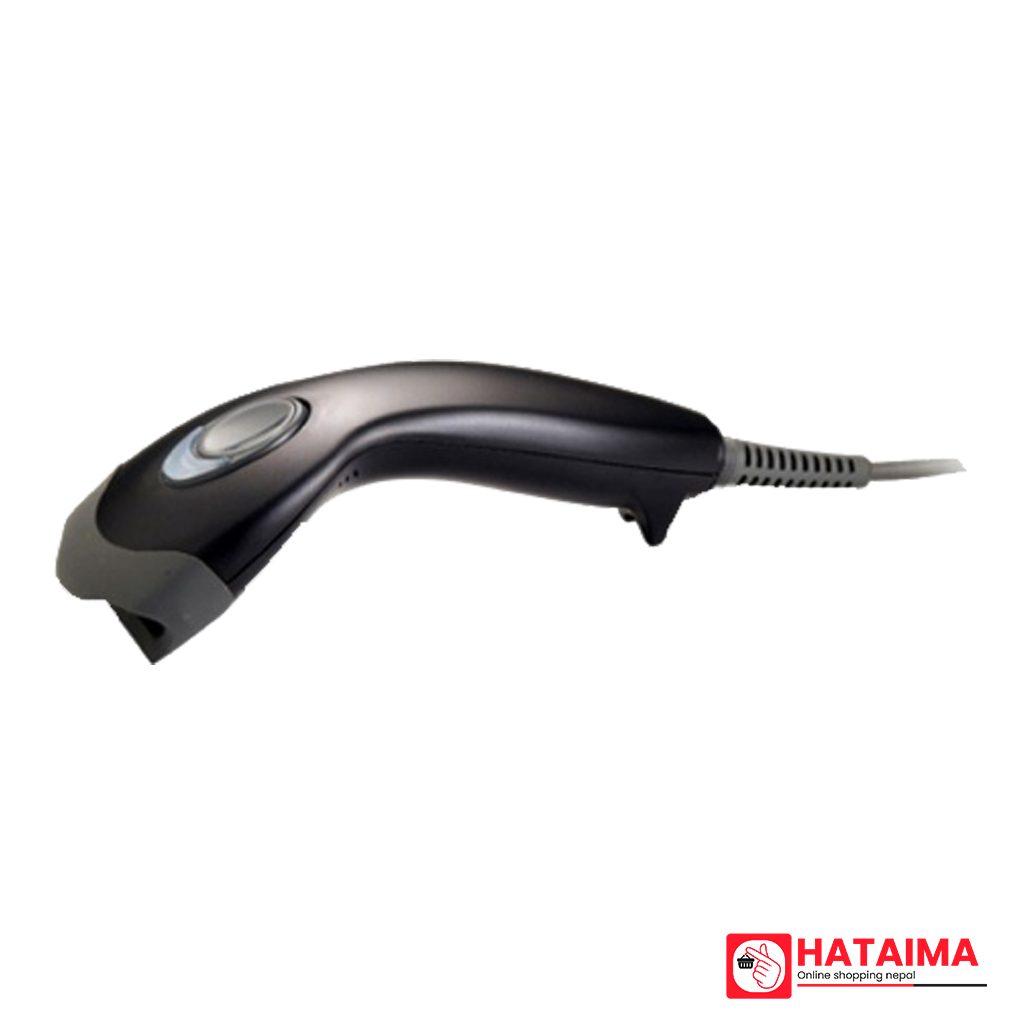

Name | Zebex Barcode Scanner |
---|---|
Brand | Zebex |
Model | Z-3100-UB |
Function | ● 1D Barcode Scan ● 330 scans per sec ● Programmable tone |
Light Source | 617 nm visible red LED |
Optical System | Linear CCD array |
Microprocessor | 32 bit |
Depth of Field | 4 mil: 0 – 60 mm 5 mil: 0 – 100 mm 7.5 mil: 0 – 140 mm 10 mil: 0 – 180 mm 13 mil: 0 – 300 mm 20 mil: 0 – 350 mm |
Scan Rate | 330 scans per second |
Print Contrast | Min. 30% @ UPC/EAN 100% |
Indicator | Blue LED |
Beeper Operation | Programmable tone & beep time |
System Interface | Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS |
Dimensions | 152.3 × 64.4 × 104.9 mm (device only) |
Cable | Standard 2M straight |
Input Voltage | 5 VDC ±5% |
Operating Current | 110 mA typical |
EMC | CE & FCC DOC compliance, VCCI, BSMI |
Operating Temperature | 0°C – 50°C (32°F – 122°F) |
Storage Temperature | -20°C – 60°C (-4°F – 140°F) |
Humidity | 5% – 95% RH (non-condensing) |
Light Level | 0-100, 000 Lux |
Drop Durability | Designed to withstand 1.5M drops |
1D Barcode | UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limite |
Remarks | Advanced Middle-Range Handheld CCD Scanner |
Country of Origin | Taiwan |
Made in | China |
