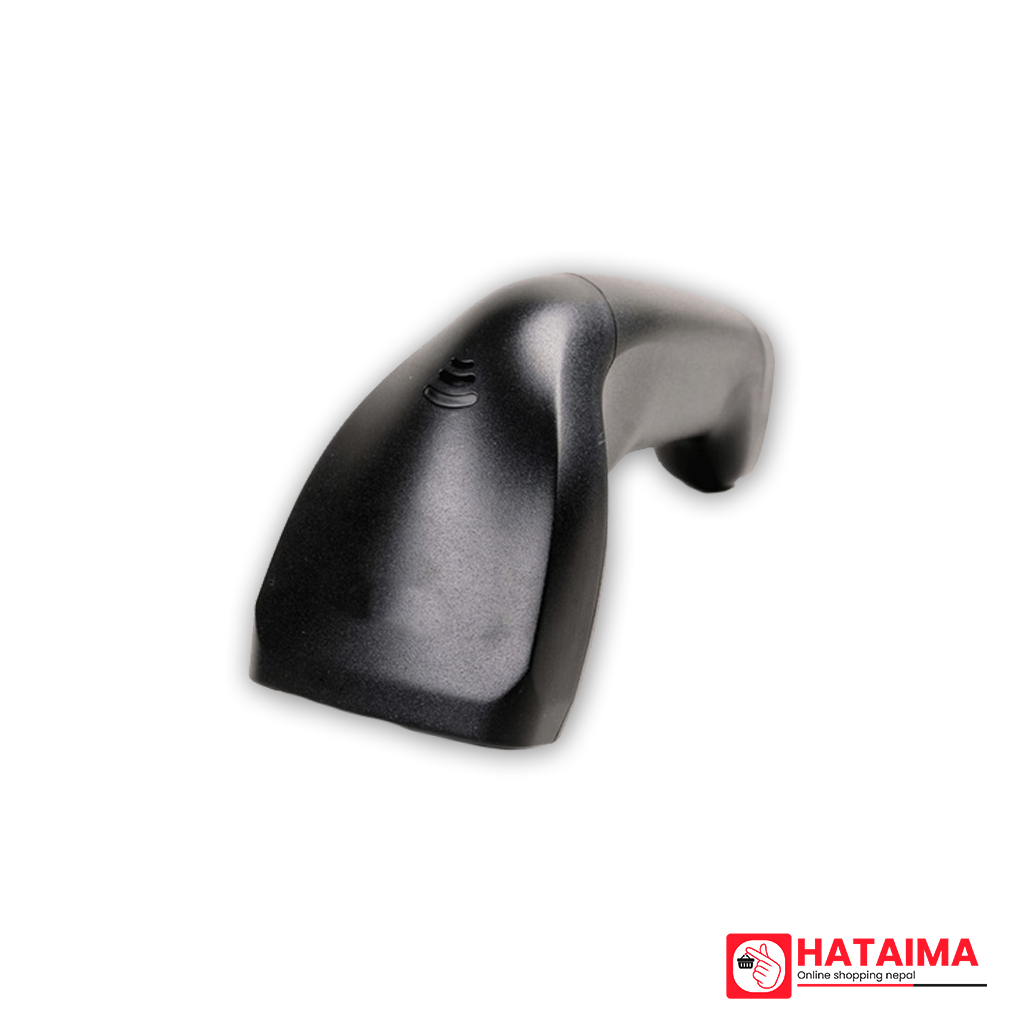

Name | xLab Barcode Scanner(Wired Laser Barcode Reader) |
---|---|
Brand | xLab |
Model | XBS-763L |
Function | 1D Barcode Scan, 150 scans per sec, Two-colors LED |
Light Source | 625 nm visible LED |
Optical System | 2,500 pixel linear sensor |
Microprocessor | 32 bit |
Depth of Field | 3 mil: 0 mm 4 mil: 0 – 40 mm 5 mil: 0 – 45 mm 7.5 mil: 0 – 50 mm 10 mil: 0 – 60 mm 13 mil: 0 – 75 mm 20 mil: 0 – 90 mm |
Scan Rate | 150 scans per second |
Minimum Bar Width | 3 mil (Code 39) > 60% PCS |
Print Contrast | 25% @ UPC/EAN, 100% |
Indicator | Two-colors LED |
Beeper Operation | Programmable tone & beep time |
System Interface | Keyboard, RS-232, HID USB, USB Virtual COM, wand, OPOS, JPOS |
Dimensions | 161.5 × 72.5 × 55.2 mm (device only) |
Cable | Standard 2M straight |
Input Voltage | 5 VDC ±5% |
Standby Current | 55 mA typical |
Operating Current | 90 mA (AVG), 150 mA (max.) |
EMC | CE & FCC DOC compliance, VCCI, BSMI |
Operating Temperature | 0°C – 50°C (32°F – 122°F) |
Storage Temperature | -20°C – 60°C (-4°F – 140°F) |
Humidity | 5% – 95% RH (non-condensing) |
Light Level | 6, 000 Lux (fluorescence) |
Drop Durability | Designed to withstand 1.5M drops |
1D Barcode | UPC/EAN/JAN, UPC-A & UPC-E, EAN-8 & EAN-13, JAN-8 & JAN-13, ISBN/ISSN, Code 39, Codabar, Code 128 & EAN 128, Code 93, ITF 2 of 5, IATA Code, MSI, China Postal Code, Code 32, Industrial 2 of 5, Standard 2 of 5, JAP, Code 11, GS1 DataBar, GS1 DataBar Limit |
Remarks | Handheld Linear Image Scanner |
Country of Origin | USA |
