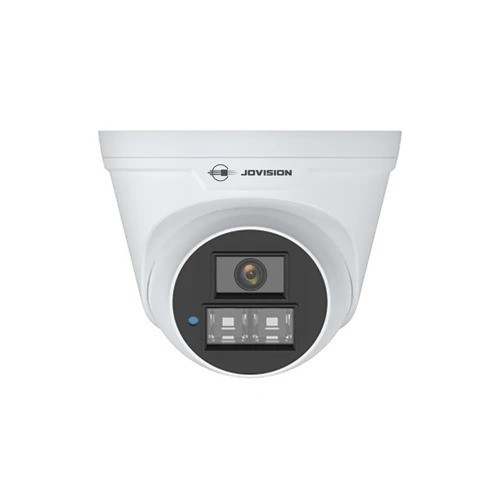

Jovision 3MP Dome Color Audio IP Camera [JVS-N935-ADL]

Video

Image Sensor

1/2.9" CMOS Sensor

Max Resolution

2304x1296

Effective Pixels

3.0MP

Compression Standard

H.264/H.265

Framerate

20fps

Bitrate

Main Stream: 256Kbps ~ 4Mbps

Sub Stream: 68Kbps~1024Kbps

SNR (dB)

39dB

Min. Illumination

0Lux (light ON)

Lens

Interface Type

M12

Lens

2.8mm, 3.6mm

FOV

2.8mm:H 96°, V 53°, D 110°

3.6mm:H 83.8°, V 42.7°, D 100.1°

Function

Audio Codec

G.711U/G.711A (default)

Exposure Control

Auto

White Balance

Auto

Gain Control

Auto

Digital 3D Noise   Reduction

Support

OSD Information Setting

Large font OSD, OSD flashing on alarm, OSD position settings

SNTP

Support

Schedule Reboot

Support

Smart Defog

Support

Motion Detection

Support (Humanoid)

Image Setting

Support Saturation, Brightness, Contrast, Sharpness   adjustment

Image Style

Standard, Soft, Transparent

Day and Night Function

Auto, Always Black & White, Always Color, Scheduled   Color

Privacy Mask

Support up 8 areas

Electronic Screen   Setting

Support maximum and minimum exposure time setting

Night Vision Optimization

Support

DWDR

Support

Screen Settings

Screen mirroring, Screen flipping

IP Adaptation

Support automatic adaptation of IP address (Optional)

Alarm Method

Email Alarm, Client Alarm

Remote Operation

System, Audio and Video, Image, Alarm, Network management

Audio Function

Built-in Mic

Network

Ethernet

10/100Mbps Ethernet

Stream

2x Streams

Network Protocols

HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS

ONVIF

Standard ONVIF

Network Transmission

CloudSEE 2.0

Browser

IE8+, Chrome18+, Firefox5.0+, Safari5.02+

User

Up to 13 Users

App

Support iOS/Android

General

Lights

2 White LEDs + 2 IR LEDs

IR Distance

Up to 25 Meters

Waterproof Level

IP53

Power Supply

DC12V or PoE (IEEE802.3af)

Power Consumption

<3W (During Day); <6W (At Night)

Working Temperature

-40°C ~ 60°C

Working Humidity

10% ~ 90% Rh

Color/Material

Black and White/Plastic+Metal

Dimensions (WxHxD)

80x100mm

Weight

200g

Installation Method

Wall or ceiling mount
